Process Medium: Such as Hydrogen,acid water,Boiler main feed water
Design Temper/ Operating Temper ;Design Press./Inlet Press./Outlet Press./Shut-off Press.
Flow Max,Normal,Min:
Density/specific Gravity/molecular w.
Dynamic viscosity:   mPa.s
Compressibility/Critical press. Pc: For gas;  Vapor press. Pv:  For Liquid
Is the medium special:Two phase flow ? suspended particles?

Valve Service:  such as vent valve,Syngas control valve
Pipe size/material/Press.Class
Flow Characteristic: Equal percentage/linear/quick open/on-off
Body material/Trim material
Packing and Style of bonnet
Leakage class/Flow open/close

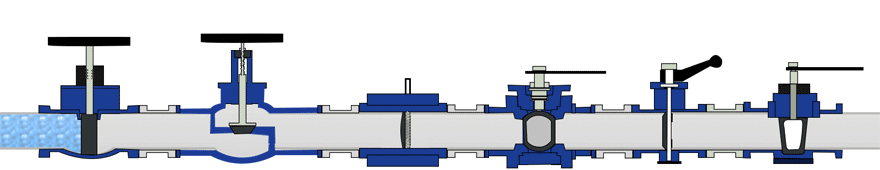

TYPE: control valve(sliding valve,rotatry valve)Shut-off valve(ball,butterfly,gate.etc)
Connection type:flange/thread/welding

Actuator Type: Pneumatic,Electric
Handwheel:top/side mount,worm gear drive?
Air/Power fail: open/close/lock
Travel time/Air press.

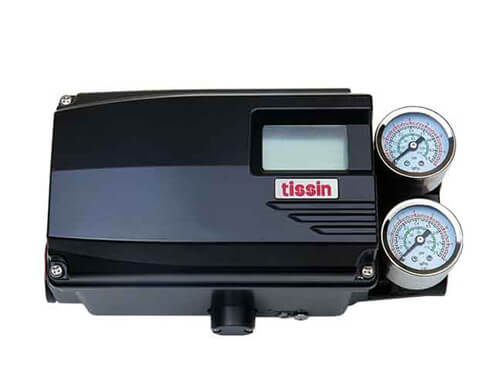

Positioner: smart/mechanical,feedback?,HART?FM/explosion-proof,single/double action。
Limit switch:contact type/inductive
Solenoid: 24V/220VAC,Body material:Cast aluminum or copper or stainless steel,Ex?,low power?
Filter regulator: stainless or al. plastic?
Valve environmental requirements: no oil degreasing, no copper, fire, anti-static
Is there any brand requirement for valve accessories?
Valve overall certification and standard requirements,Sil,API6D etc.
Other requirements.
